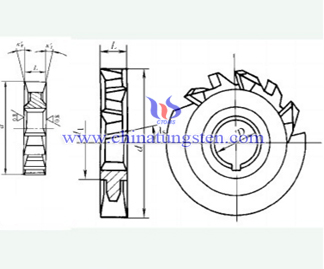

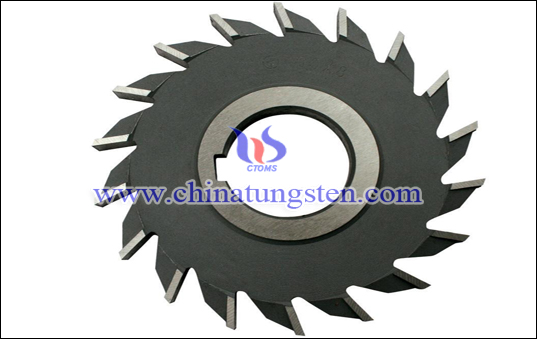

Tungsten Carbide Side Face Milling Cutter

Introduction

Tungsten carbide tricorn bit is one of indispensable tool for standard lathe and mainly used in milling grooves and steps.

Types

Generally, it divided into straight tooth and staggered tooth according to the tooth profile.
Straight tooth: Used for milling shallow groove with fixed dimensions, can be also milling grooves, stepped surface and side surface finishing;
Staggered tooth: Mainly used for milling the deep grooves.
In a word, side face milling cutter can be not only used in medium hard metal groove processing, but also the non-metal materials.

Applications

Except the main cutting edge of circumference, it also has assistant cutting edges on both sides, which can effectively improve the cutting efficiency and the surface roughness. In addition, by changing the way of clamping and the position between the mill and the workpiece can expand the scope of using.
1. Instead of orthogonal face mill for machining the end surface and stepped surface;
2. Instead of single-angle milling reamer and ratchet;
3. Instead of the spline milling.
