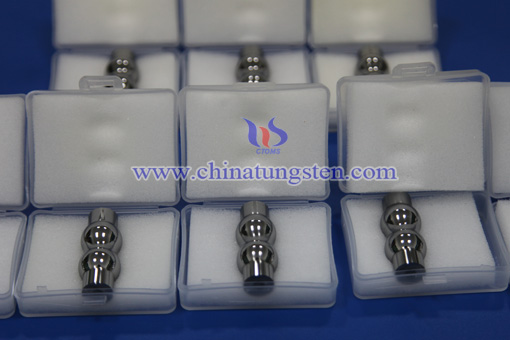

Tungsten Carbide Arc Seal

Tungsten carbide seal is precision machined with the arc R angle. ChinaTungsten Online customizes the drawings of the cemented carbide arc seals according to the customer's requirements. The size specifications are: φ18.6*φ16.87*φ14.01*φ13.5* φ5*R1-R9-R9.68*45.5.

The outer diameter, inner diameter and length of tungsten steel arc seals meet ±0.01, the arc R1 meets ±0.1, the arc R9-R9.68 meets ±0.01, and the actual size of the arc R is detected by the profiler to meet the precision machining requirements. The entire tungsten carbide seal is polished after precision machining, similar to candied haws, exuding a beautiful metallic luster.

The material performance parameters are as follows:
1. Co content: 10%;
2. Density g/cm3: 14.45±0.15;
3. Hardness HV: 1610±40;
4. Grain size: 0.6um;
5. Bending strength: 3600N/mm2;
6. Porosity: A02B00C00；
7. Surface Roughness: Ra0.4um
